Building Cascade 1: Woodwork

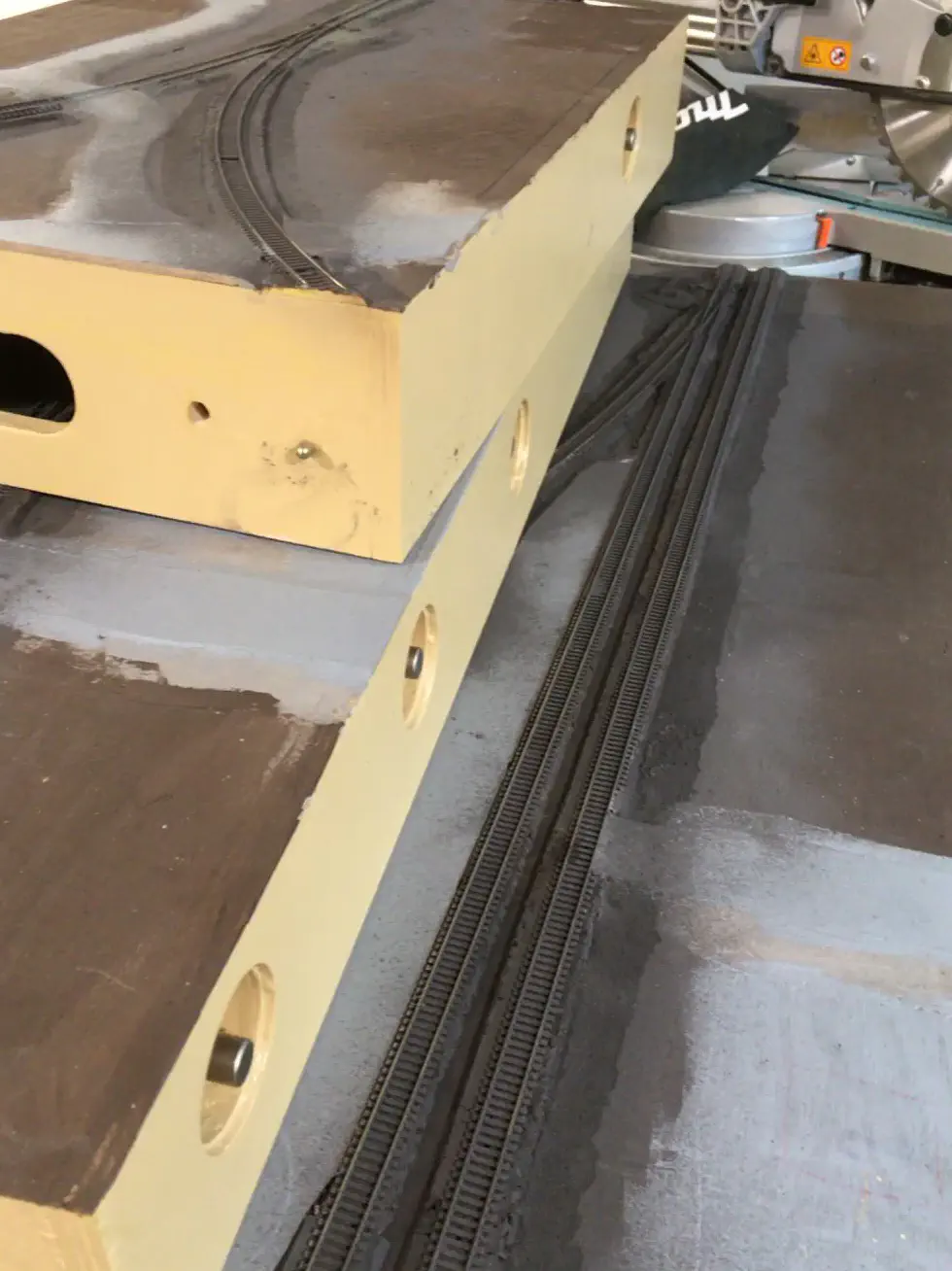

The whole module required 8 segments. Four straight modules of 90 x 40 cm, two straight 60 x 40 and two curved modules with a track radius of 160 cm at 30 ° each. The total length is about six meters.

The segments are built from 12 mm multiplex birch plywood. The heavy stuff with 6 mm pine plywood on top. I would not use this material for a complete module anymore. It is very sturdy but makes it very heavy.

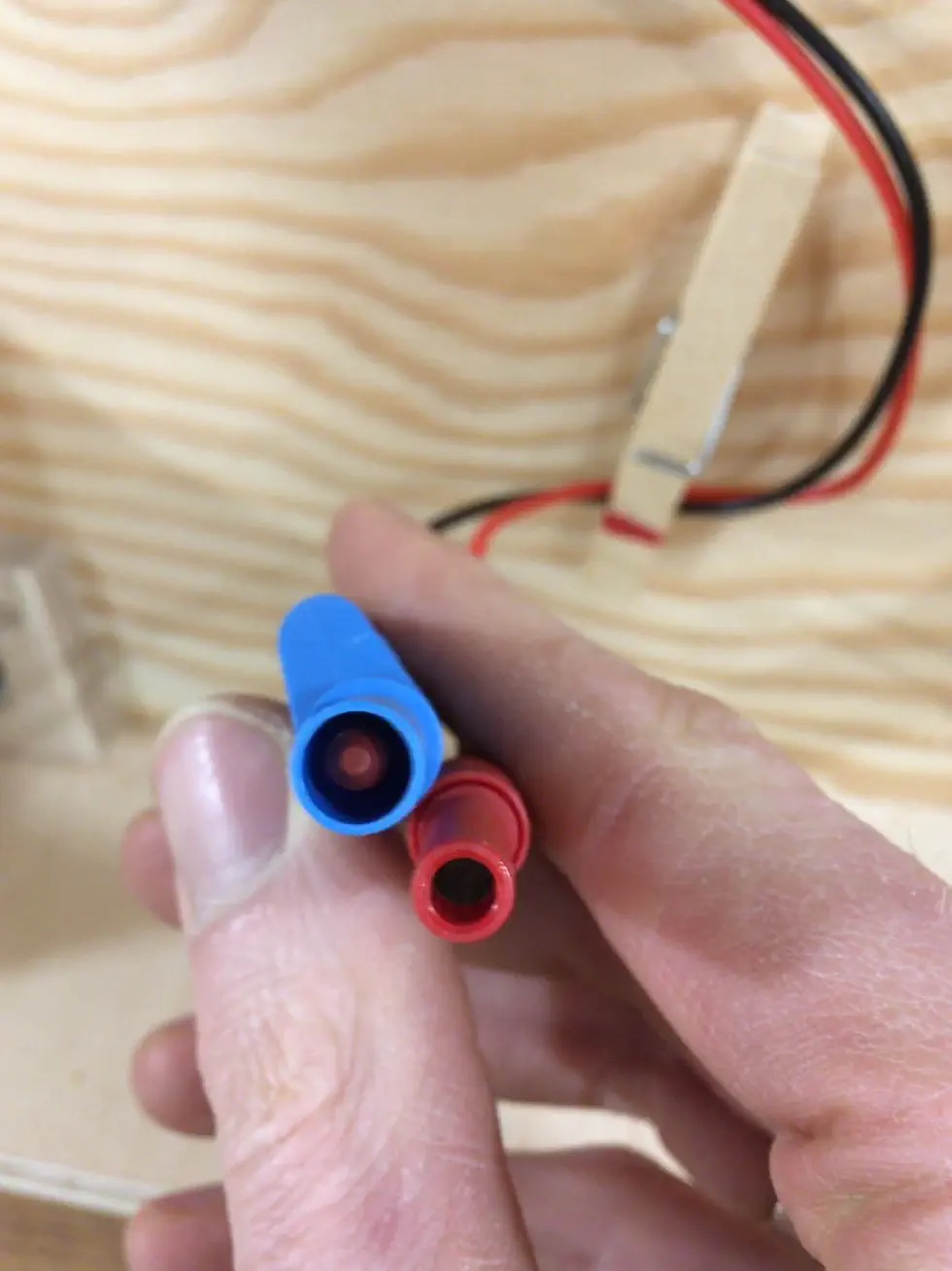

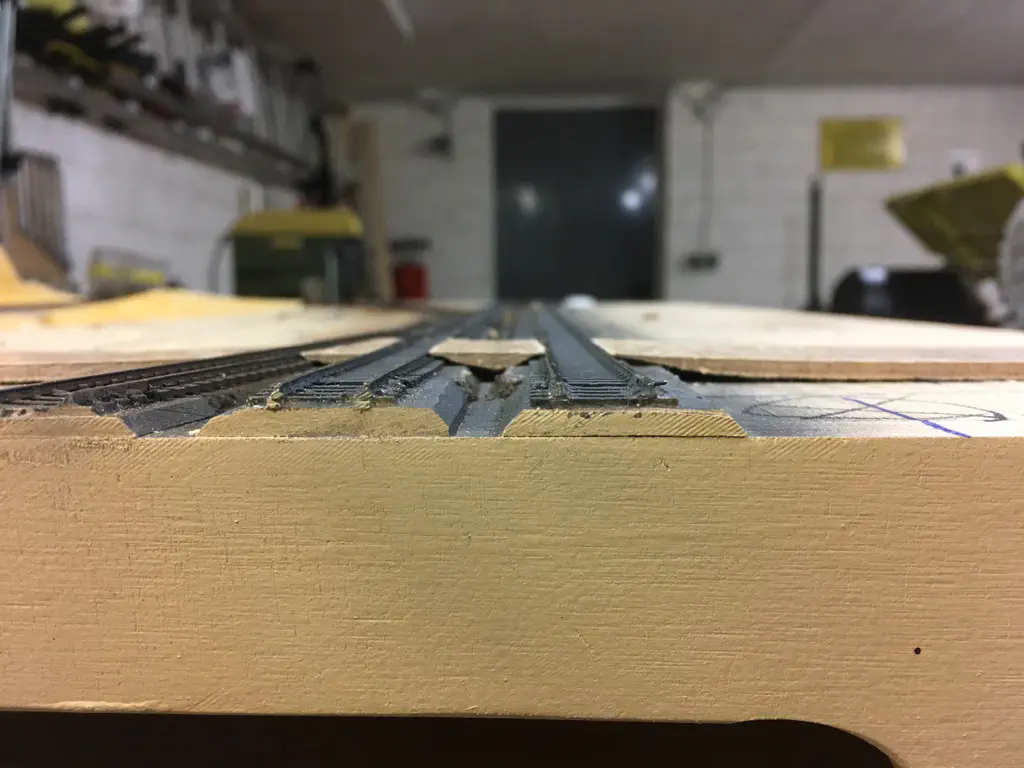

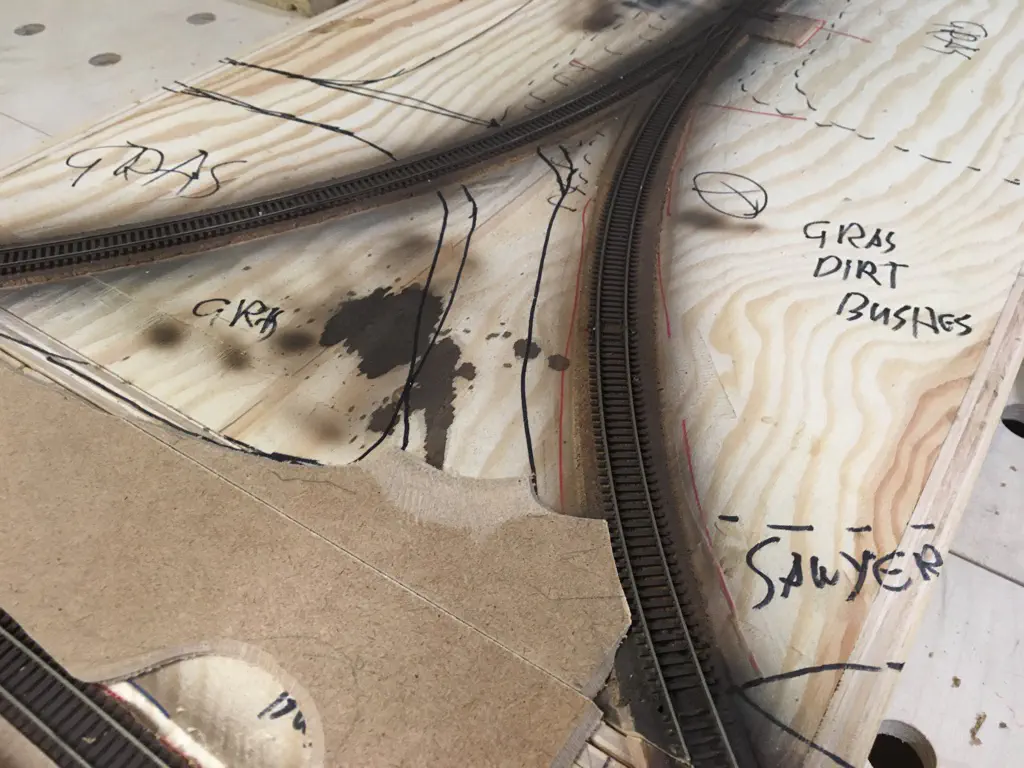

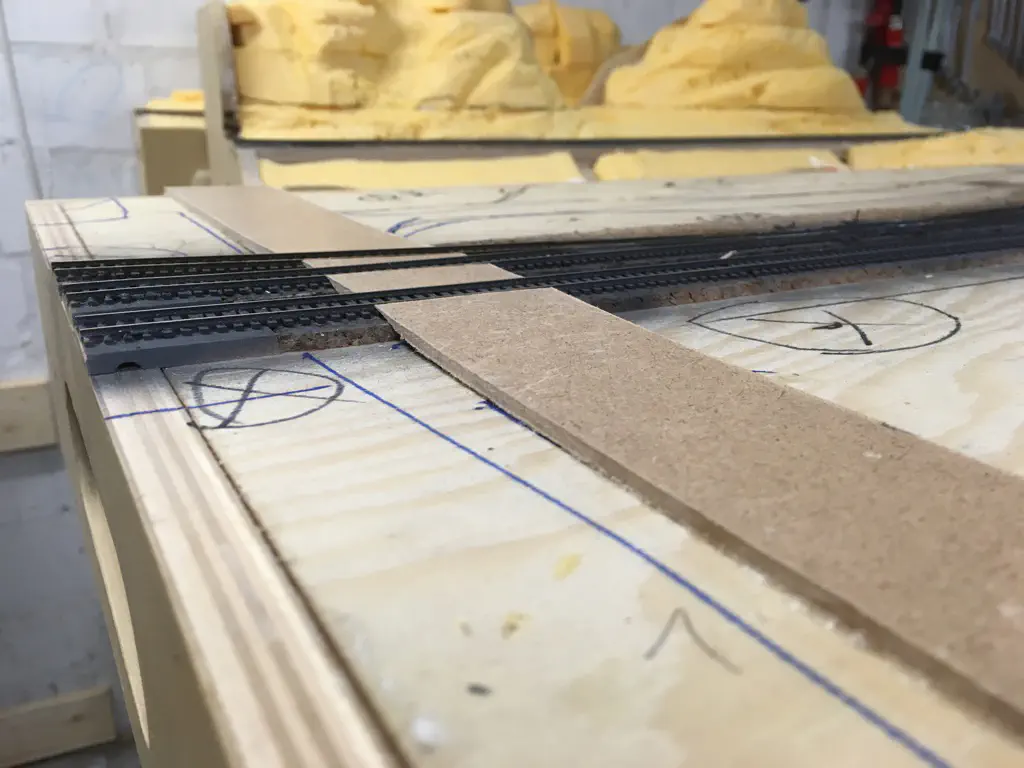

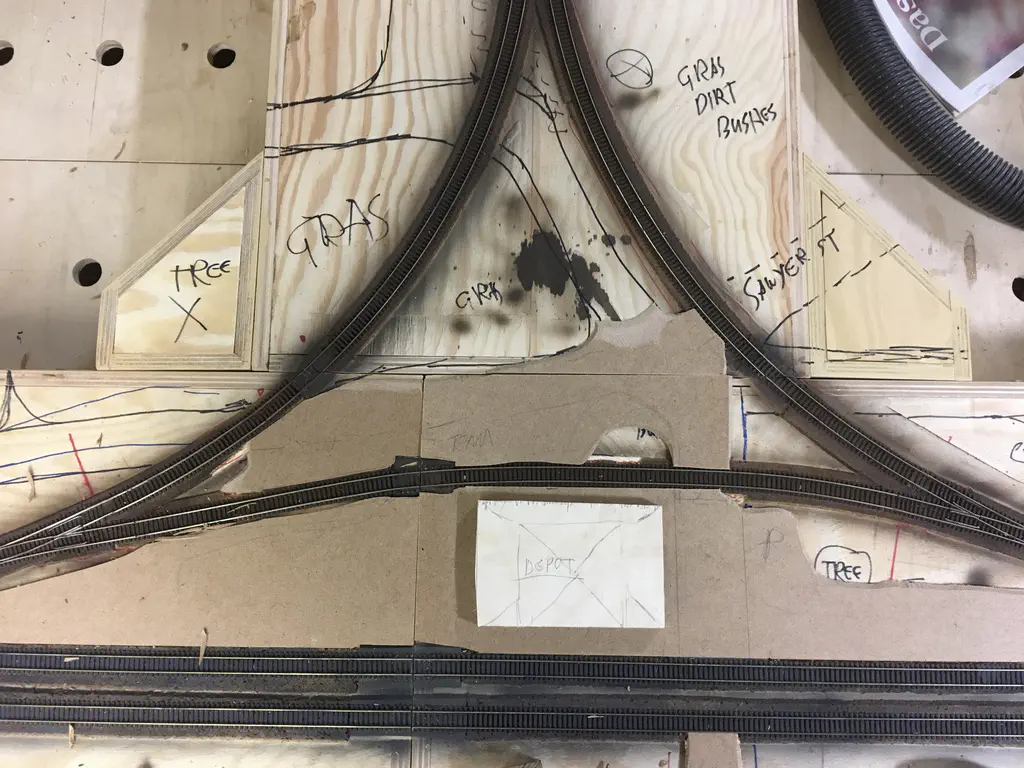

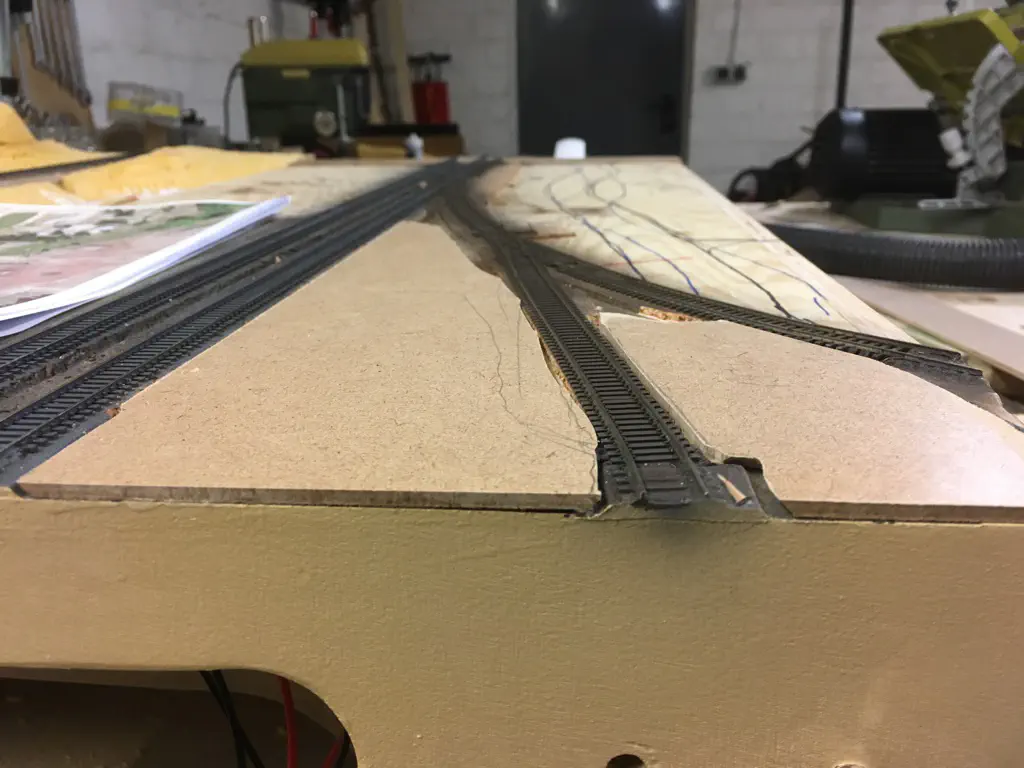

After the basic woodwork the track was added, switch mechanics were built, track was was wired to feeders and painted in the standard color. The future structures and roads were outlined and added with 4 mm Masonite cut to shape.

See more progress in the Building Cascade series.
